Explore Gallery & Specs
Click to view full specifications ▼
| Machine Type | Semi-Automatic |
| Hole Diameter | 32 mm |
| Power Source | Petrol |
| Mounting Type | Rail Clamp |
| Power Consumption | 1 HP |
| Material | Mild Steel |
| Capacity | 36mm |
| Max Speed | 250 RPM |
| Number Of Shaft | 01 |
| Usage/Application | Rail Drilling |
| Rail Section | 52 kg Rail, 60 kg Rail |
| Torque Control | No |

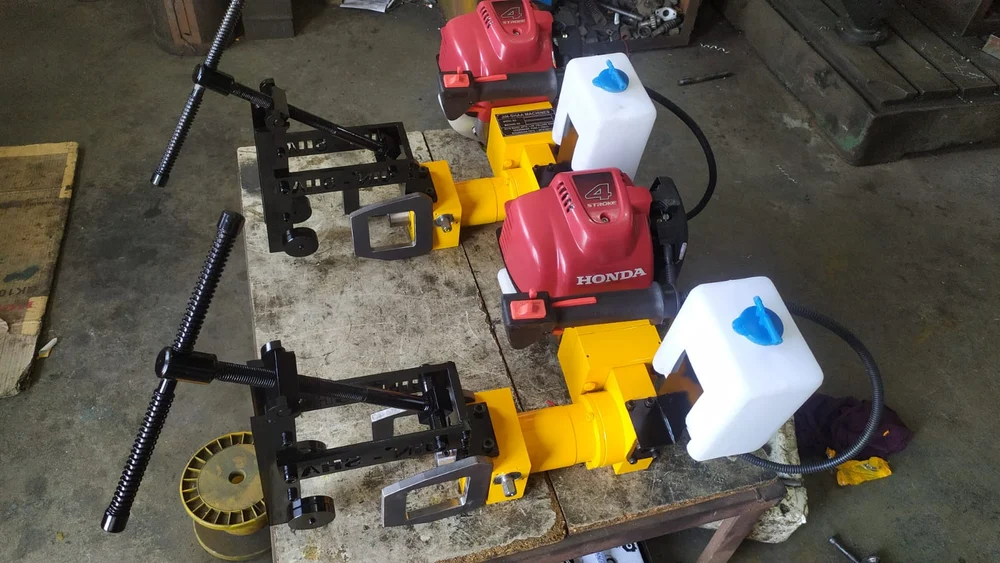

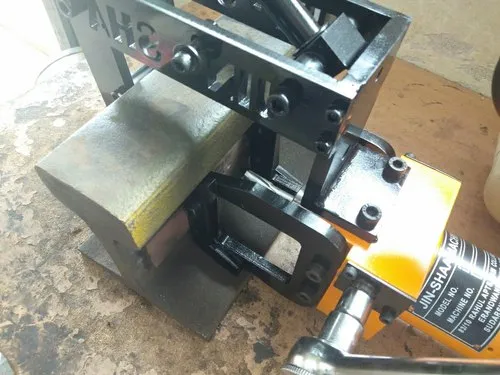

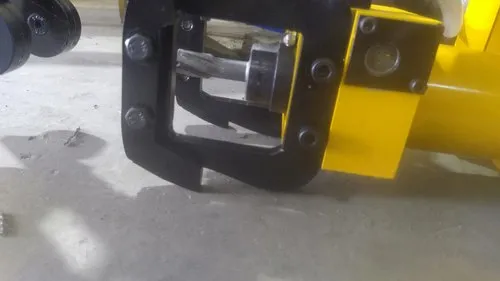

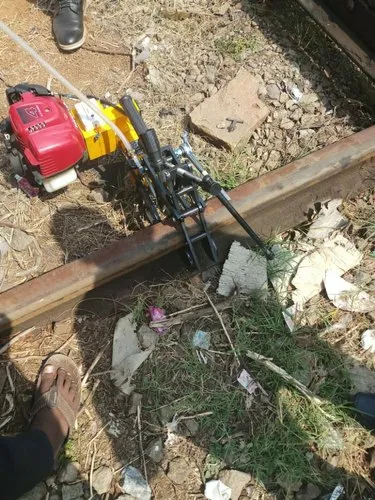

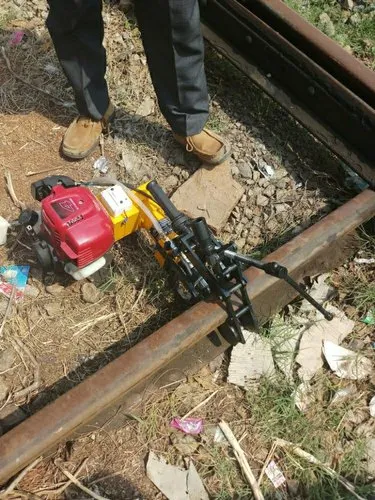

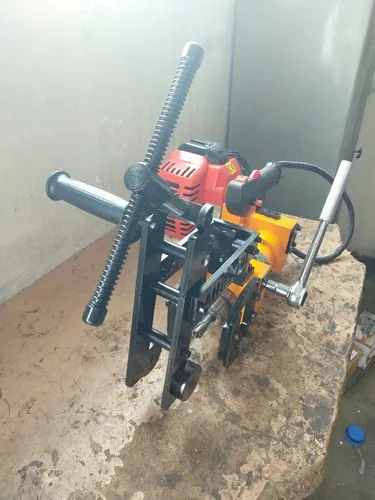

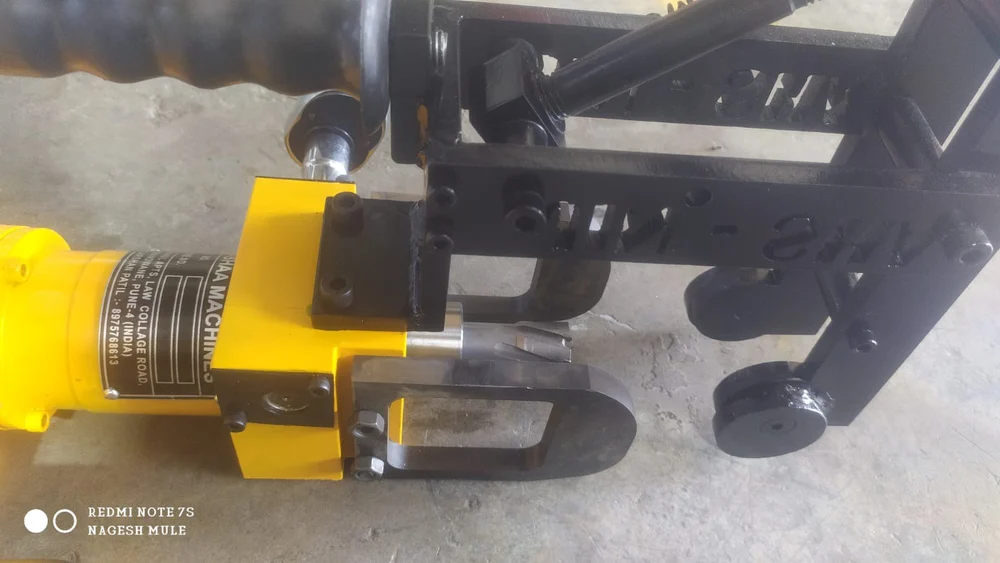

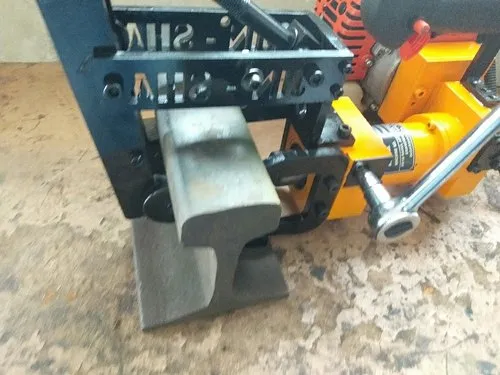

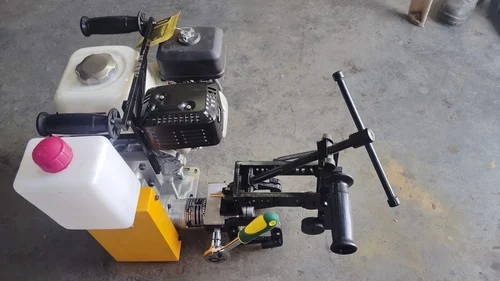

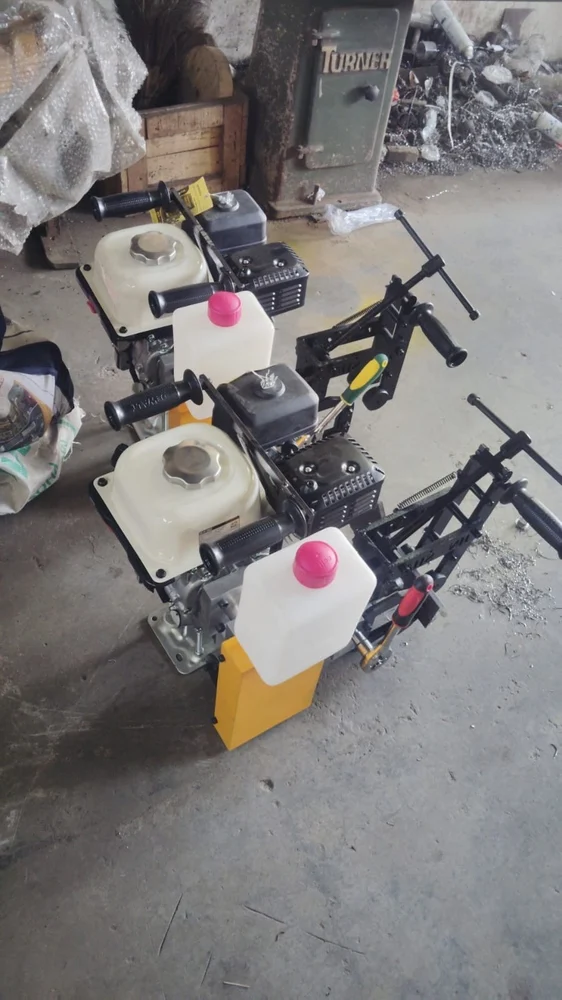

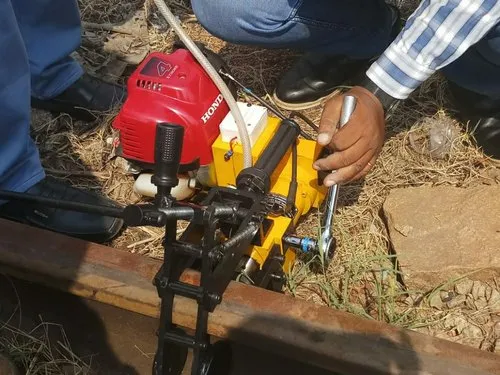

The Rail Drilling machine was developed by us purely to save costly foreign exchange as the Indian Railways are mostly buying imported equipment for the same Use/ scope of the Machine During new track laying and during maintaining existing tracks the rails have to be drilled for bolting two rails.Even when the rail cracks sometimes due to constant exposure to heat and cold the best way is to bolt the two tracks by putting a fish plate between the two rails .If the crack is more than 3mm wide welding is also not permitted .Even if the crack occurs on a bridge again welding is not permitted ,at such a time only bolting is the option .Our Rail Drilling machine is a very convenient option to do the drilling work right up to 36mm hole size .Also our machine is driven by a 100cc four stroke petrol engine the reason to do the same is that the broken / cracked rail could be anywhere where 220v or 120 v electrical supply is not available ,so the machine is driven by a petrol engine .Mounting of the machine The machine has a special mounting fixture on the side of the cutter two special locating plates having the form of the rail are provided this also assures perfect centering of the machine to the rails on the other side a special clamp provided perfect grip to hold the entire machine.Electric versions avaliable ( 220V/110V AC).
Click to view full specifications ▼
| Machine Type | Automatic |
| Hole Diameter | Up to 24 mm |
| Power Source | Petrol |
| Mounting Type | Rail Clamp |
| Power Consumption | 2 HP |
| Material | Mild Steel |
| Capacity | 7.3mm twist drill to 25mm TCT core drill |
| Number Of Shaft | 01 |
| Country of Origin | Made in India |
| Usage/Application | Rail Drilling Machine |
| Rail Section | 60 kg Rail, 90 R Rail, 52 kg Rail |
| NA | No |

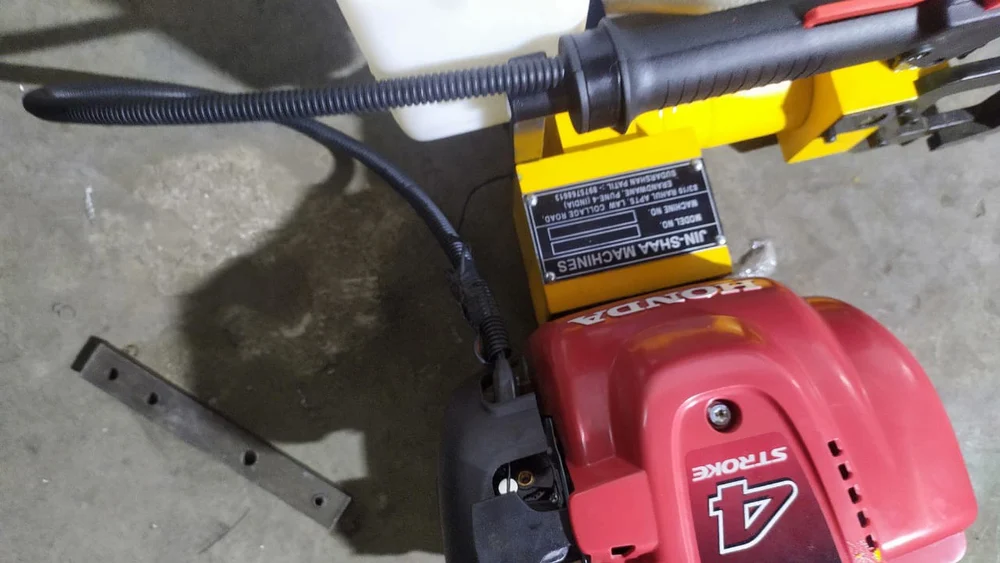

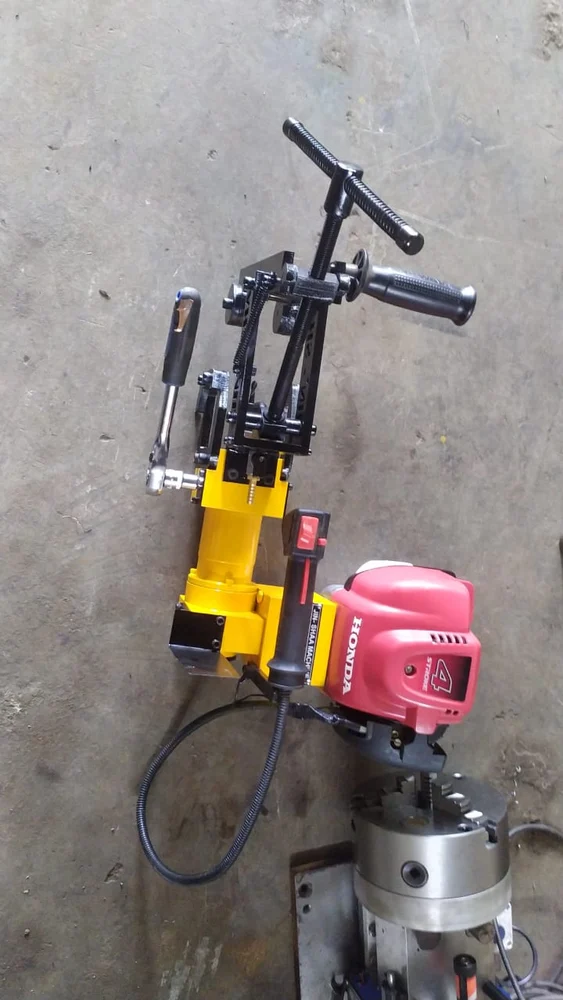

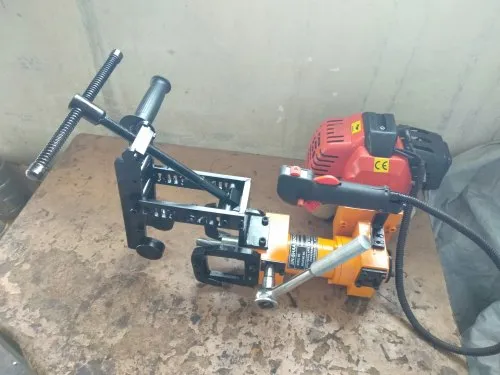

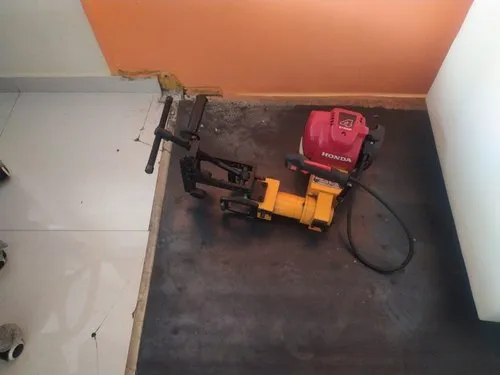

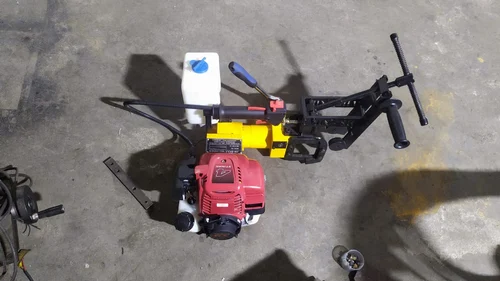

The Rail Drilling machine was developed by us purely to save costly foreign exchange as the Indian Railways are mostly buying imported equipment for the same Use/ scope of the Machine During new track laying and during maintaining existing tracks the rails have to be drilled for bolting two rails.Even when the rail cracks sometimes due to constant exposure to heat and cold the best way is to bolt the two tracks by putting a fish plate between the two rails .If the crack is more than 3mm wide welding is also not permitted .Even if the crack occurs on a bridge again welding is not permitted ,at such a time only bolting is the option .Our Rail Drilling machine is a very convenient option to do the drilling work right up to 36mm hole size .Also our machine is driven by a Honda 35cc four stroke petrol engine the reason to do the same is that the broken / cracked rail could be anywhere where 220v or 120 v electrical supply is not available ,so the machine is driven by a petrol engine .Mounting of the machine The machine has a special mounting fixture on the side of the cutter two special locating plates having the form of the rail are provided this also assures perfect centering of the machine to the rails on the other side a special clamp provided perfect grip to hold the entire machine.Electric versions avaliable ( 220V/110V AC).
Click to view full specifications ▼
| Machine Type | Manual |
| Hole Diameter | 25–32 mm |
| Power Source | Petrol |
| Mounting Type | Rail Clamp |
| Automatic Grade | Automatic |
| Material | Mild Steel |
| Brand | Jin Shaa |
| Usage/Application | Industrial |
| Rail Section | 52 kg Rail, 60 kg Rail |

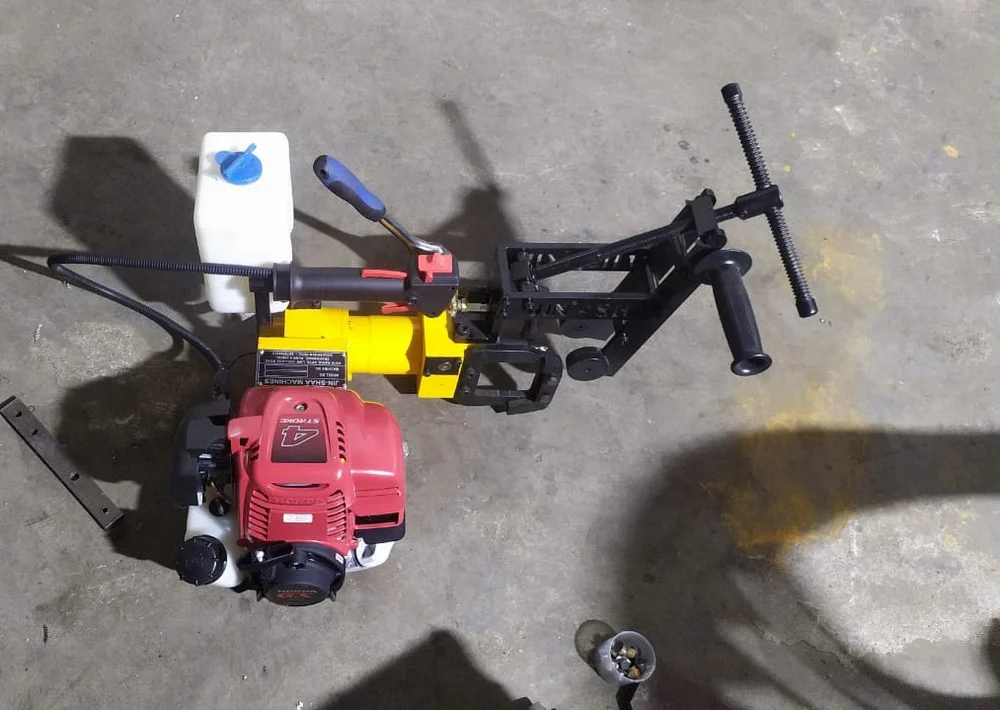

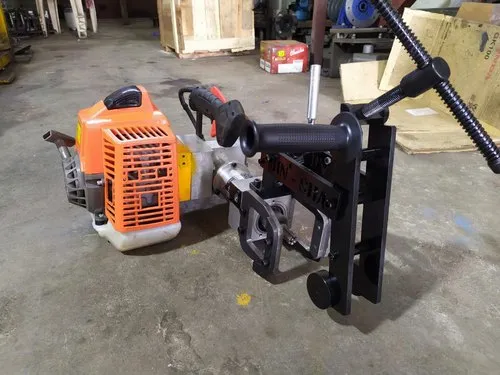

Light Weight Rail Drilling machine powered by a 60 cc two stroke engine.
.webp)
Click to view full specifications ▼
| Machine Type | Manual |
| Hole Diameter | 36 mm |
| Power Source | Petrol |
| Mounting Type | Rail Clamp |
| Power Consumption | 2 HP |
| Material | Mild Steel |
| Number Of Shaft | 01 |
| Brand | Jin Shaa |
| Usage/Application | Industrial |
| Rail Section | 52 kg Rail, 60 kg Rail, 90 R Rail |
| Voltage | NA |
| Reverse Rotation | No |
| Size | 32 mm |
| Spindle Speed 4P | 260 RPM |
| Drilling Speed | 150 RPM |
| Country of Origin | Made in India |
| Model Number | JSM 50 |

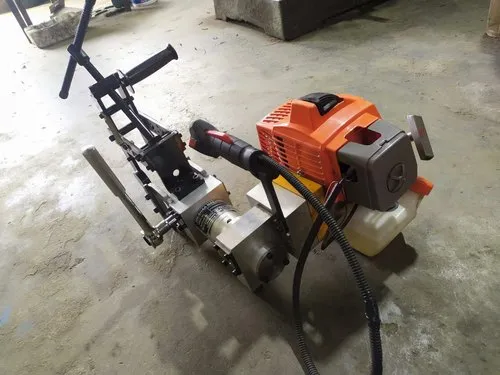

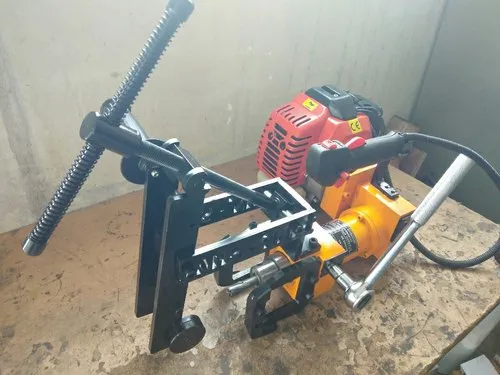

The Rail Drilling machine was developed by us purely to save costly foreign exchange as the Indian Railways are mostly buying imported equipment for the same Use/ scope of the Machine During new track laying and during maintaining existing tracks the rails have to be drilled for bolting two rails.Even when the rail cracks sometimes due to constant exposure to heat and cold the best way is to bolt the two tracks by putting a fish plate between the two rails .If the crack is more than 3mm wide welding is also not permitted .Even if the crack occurs on a bridge again welding is not permitted ,at such a time only bolting is the option .Our Rail Drilling machine is a very convenient option to do the drilling work right up to 36mm hole size .Also our machine is driven by a 50cc two stroke petrol engine the reason to do the same is that the broken / cracked rail could be anywhere where 220v or 120 v electrical supply is not available ,so the machine is driven by a petrol engine .Mounting of the machine The machine has a special mounting fixture on the side of the cutter two special locating plates having the form of the rail are provided this also assures perfect centering of the machine to the rails on the other side a special clamp provided perfect grip to hold the entire machine.Electric versions avaliable ( 220V/110V AC).
Click to view full specifications ▼
| Machine Type | Rail Drilling machine |
| Hole Diameter | 35 mm, 0-25 mm |
| Power Source | Petrol |
| Mounting Type | Rail Clamp |
| Material | Mild Steel |
| Capacity | 24 mm |
| Max Speed | 250 RPM |
| Number Of Shaft | 01 |
| Brand | Jin Shaa |
| Usage/Application | Rail Drilling Machine |
| Rail Section | 52 kg Rail, 60 kg Rail, 90 R Rail |
| Model Number | JSM 35 |
The Rail Drilling machine was developed by us purely to save costly foreign exchange as the Indian Railways are mostly buying imported equipment for the same Use/ scope of the Machine During new track laying and during maintaining existing tracks the rails have to be drilled for bolting two rails.Even when the rail cracks sometimes due to constant exposure to heat and cold the best way is to bolt the two tracks by putting a fish plate between the two rails .If the crack is more than 3mm wide welding is also not permitted .Even if the crack occurs on a bridge again welding is not permitted ,at such a time only bolting is the option .Our Rail Drilling machine is a very convenient option to do the drilling work right up to 36mm hole size .Also our machine is driven by a 35cc petrol engine the reason to do the same is that the broken / cracked rail could be anywhere where 220v or 120 v electrical supply is not available ,so the machine is driven by a petrol engine .Mounting of the machine The machine has a special mounting fixture on the side of the cutter two special locating plates having the form of the rail are provided this also assures perfect centering of the machine to the rails on the other side a special clamp provided perfect grip to hold the entire machine.Electric versions avaliable ( 220V/110V AC).
.webp)

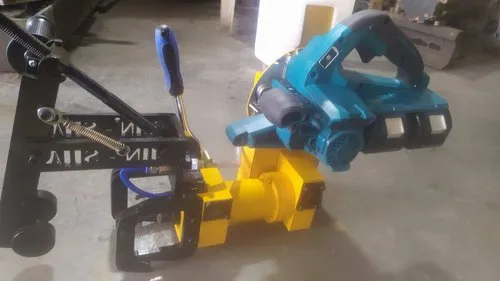

Click to view full specifications ▼
| Machine Type | Manual |
| Hole Diameter | Up to 24 mm |
| Power Source | Battery |
| Mounting Type | Rail Clamp |
| Power Consumption | NA |
| Material | Mild Steel |
| Capacity | 32 mm |
| Voltage | Battery |
| Number Of Shaft | 01 |
| Brand | Jin Shaa |
| Usage/Application | Rail Drilling Machine |
| Rail Section | 52 kg Rail, 60 kg Rail |
| Reverse Rotation | NO |
| Drilling Speed | 300 RPM |
| Country of Origin | Made in India |
| Question | Wt 23 kgs |
Easy and efficient drilling of rails.
Click to view full specifications ▼
| Hole Diameter | 36 mm |
| Power Source | Electric |
| Mounting Type | Rail Clamp |
| Automatic Grade | Semi Automatic |
| For Pipe Dimension | NA |
| Power Consumption | 1300 Watts Single Phase |
| Model No | JSME36 |
| Material | Mild Steel |
| Primer Mover | Electric Motor |
| Twist Drill | 7.3 mm |
| Capacity(Ton) | 36 mm Dia |
| Model | JSM36E |
| Number Of Shaft | 01 |
| Usage/Application | Railway Track Drilling |
| Rail Section | 90 R Rail, 60 kg Rail, 52 kg Rail |
| Voltage | 220 V |

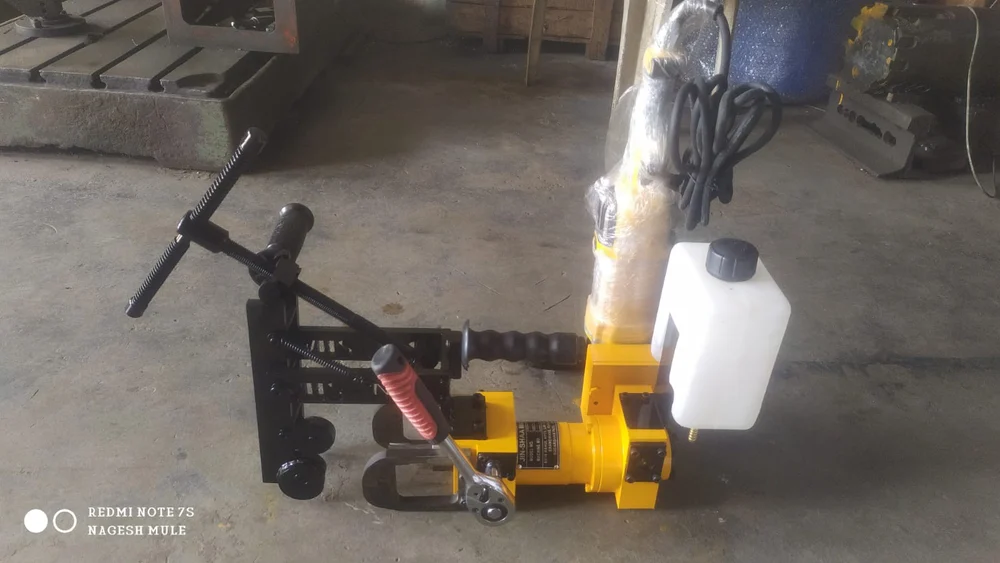

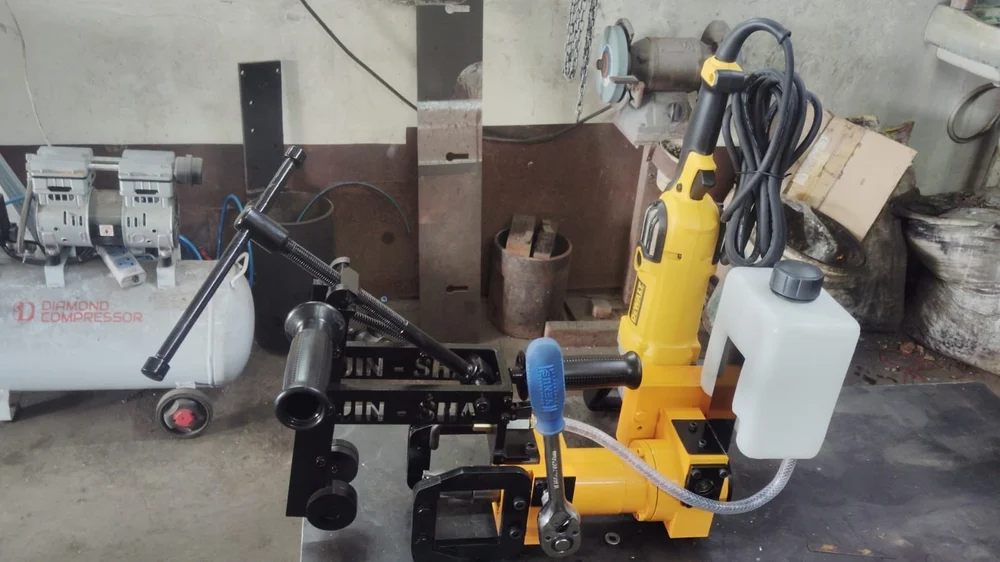

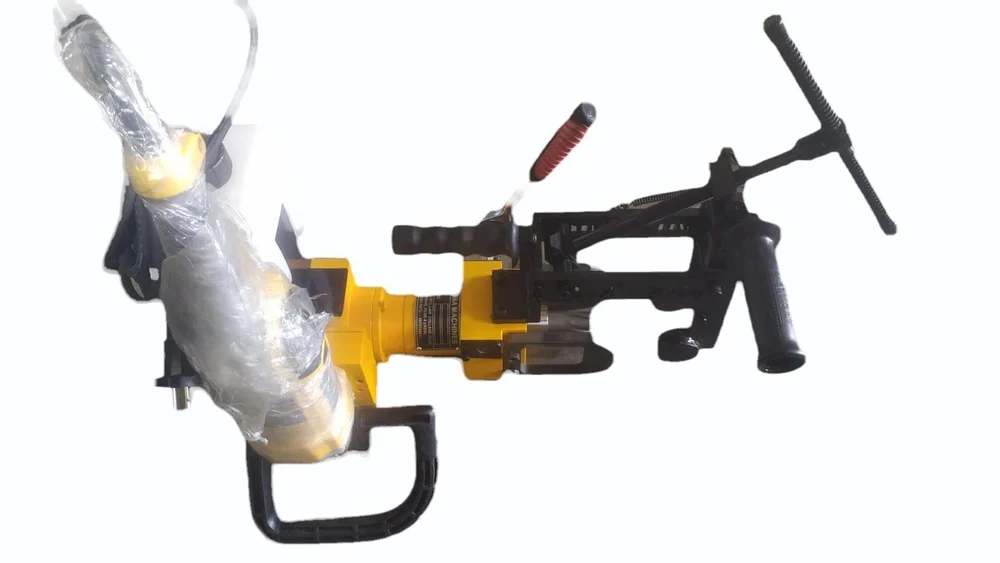

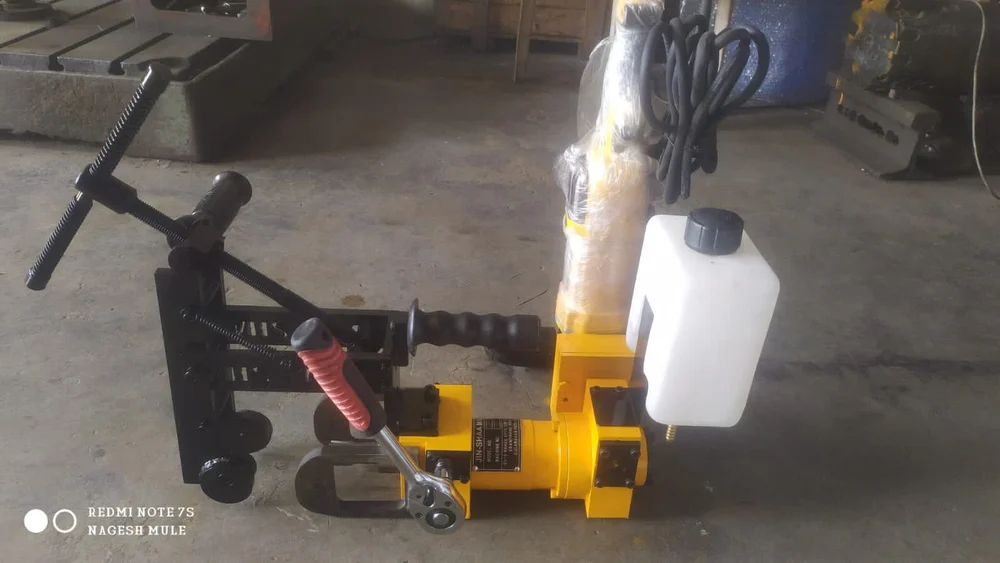

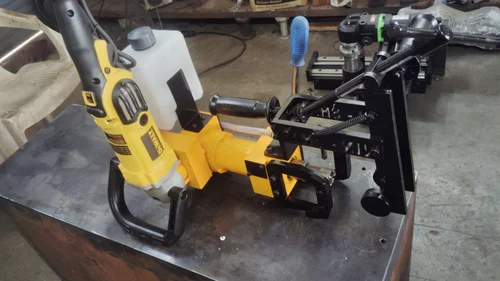

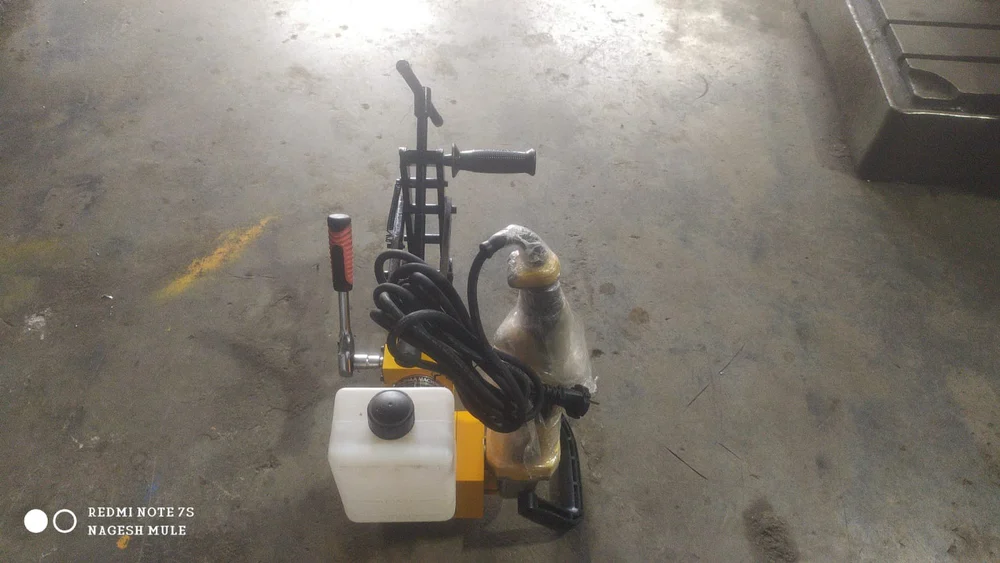

Electric Rail Drilling Machine working on 220v single phase drilling capacity of 36 with TCT core drill. Among the lightest Rail Drilling Machines in Ind.
Click to view full specifications ▼
| Hole Diameter | 25–32 mm |
| Power Source | Petrol |
| Mounting Type | Rail Clamp |
| Automatic Grade | Semi Automatic |
| Model No | JSM80 |
| Primer Mover | Honda 4 stroke 80 cc engine |
| Twist Drill | TCT core drill 36 mm |
| Rail Section | 60 kg Rail, 52 kg Rail, 90 R Rail |

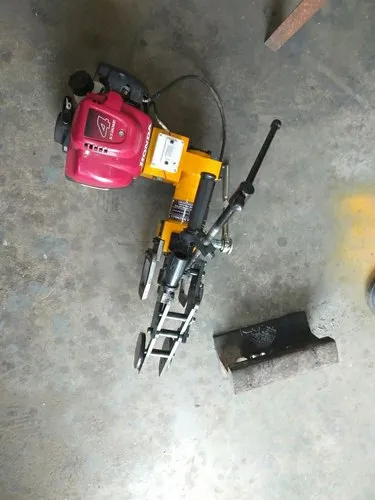

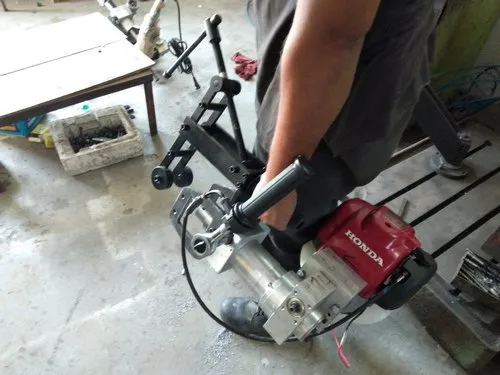

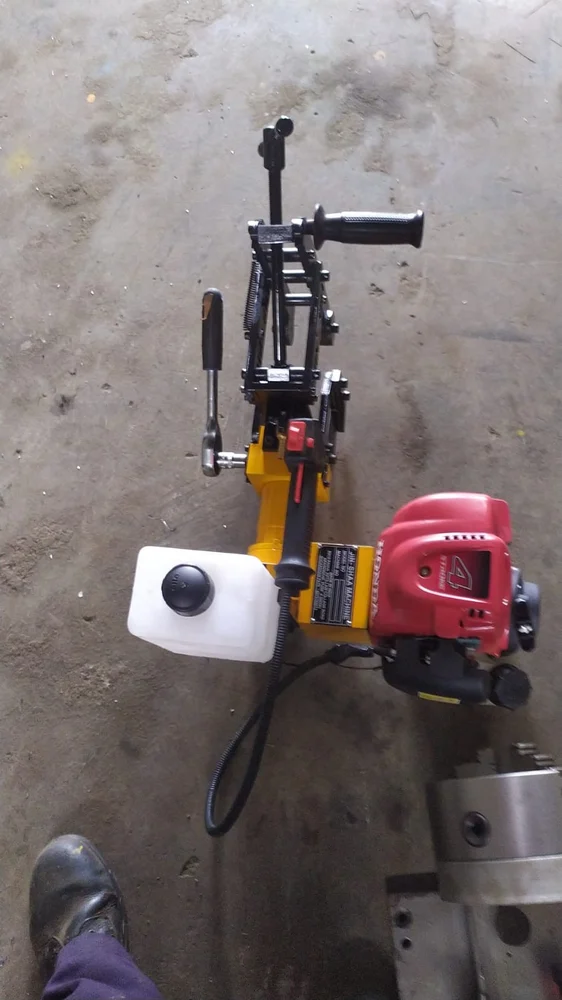

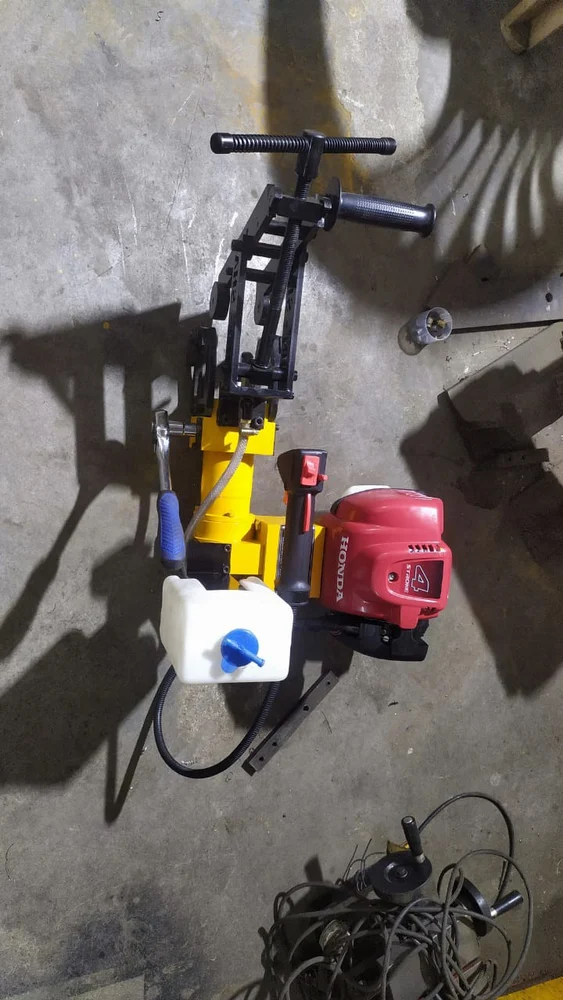

Light Weight Rail Drilling machine with a 80 cc Honda four stroke engine.
