Explore Gallery & Specs
Click to view full specifications ▼
| Control Type | Semi-Automatic |
| Machine Type | Portable Keyway Milling Machine |
| Power Source | Electric |
| Mounting Type | Rail Clamp |
| Base Type | Clamp |
| Material | Mild Steel |
| Brand | Jin Shaa |
| Model Name/Number | JSM404 |
| Usage/Application | Keyway Milling |
| Voltage | 220 V |
| Weight | 38 kgs |
| Warranty | 1 year |
| Capacity | 200 |
| Product Type | Milling Machine |
| Country of Origin | Made in India |
| Phase | Single Phase |

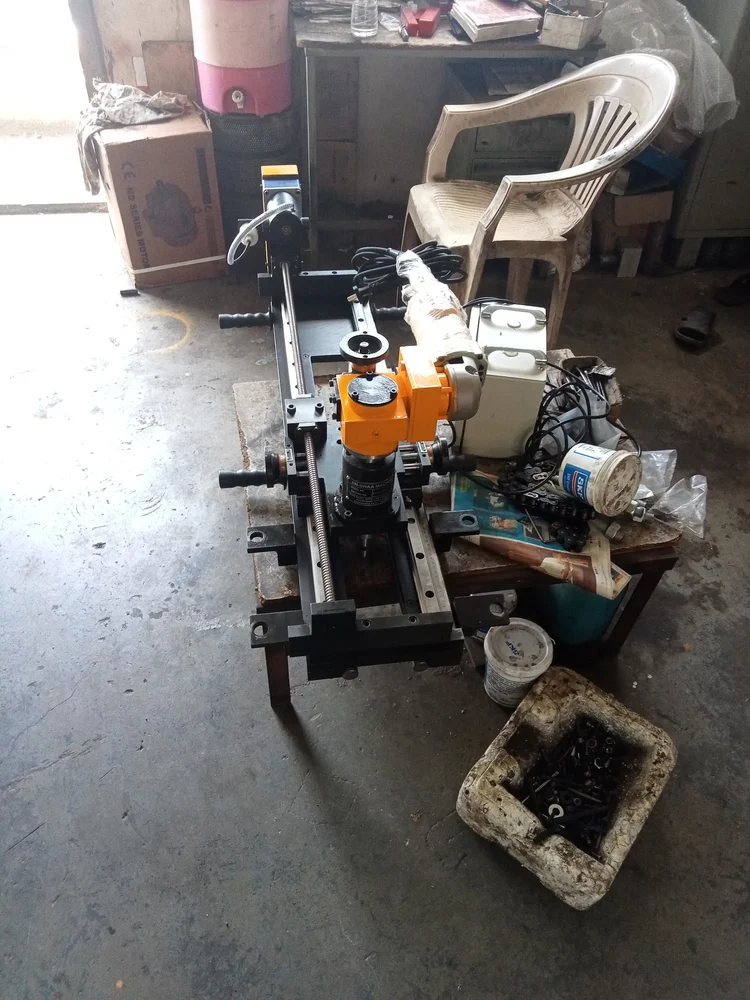

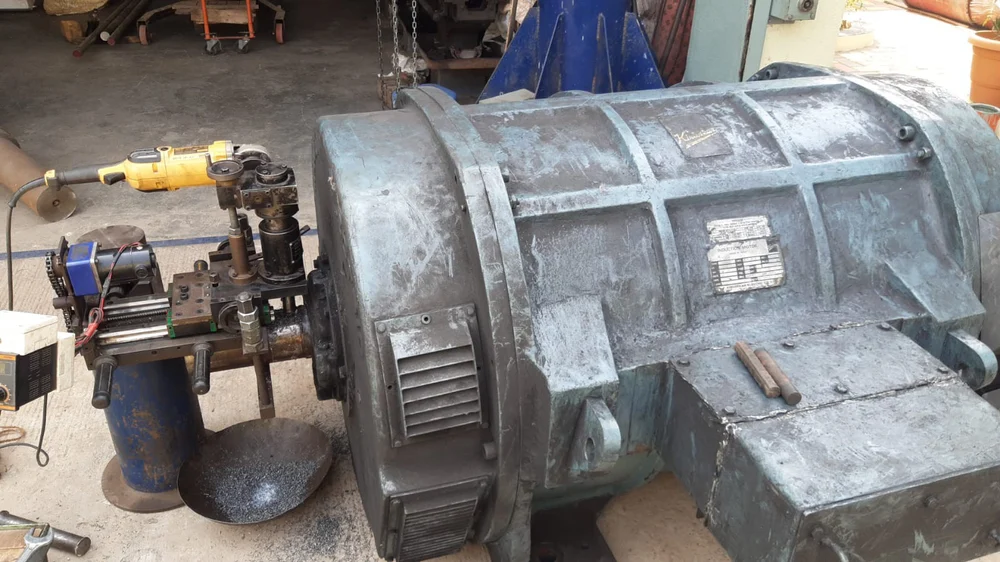

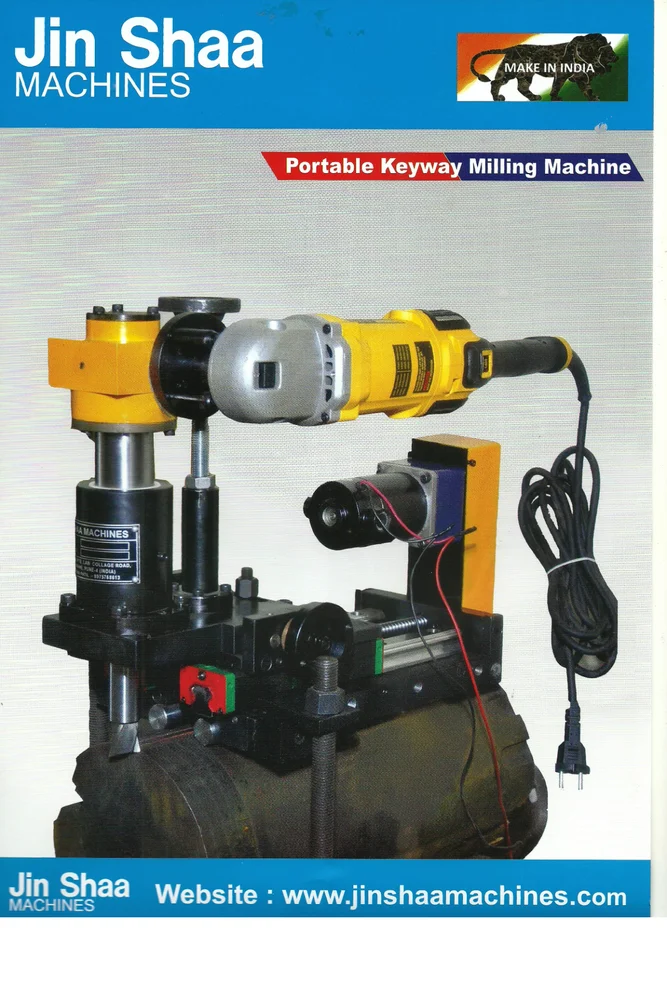

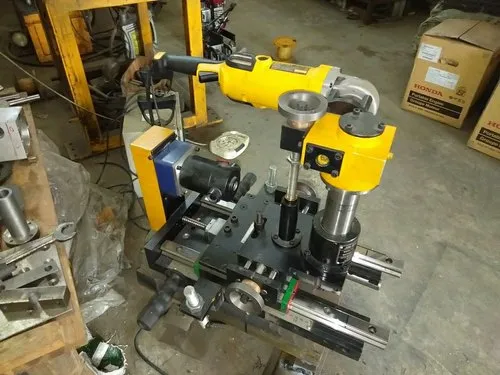

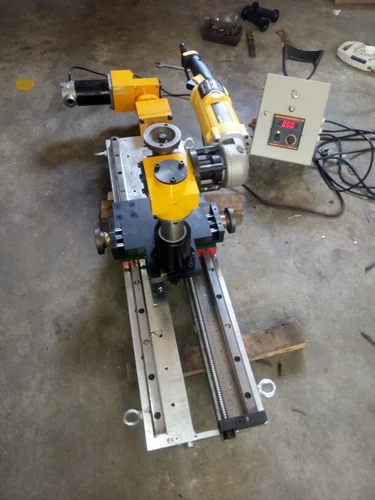

Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 304 Keyway Cutter is designed to mill (6mm) to (32m ) wide by 155 mm long keyway slots in 38mm to 300 mm diameter shafts. The cutter may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided for by a manual ratched system. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 32 mm and clamping systems from 50 mm to 300mm diameter shafts.The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis . Offered in 110v/220vMachines are now available with magnetic clamping also. Now also available in fully Automatic configuration please contact.
Click to view full specifications ▼
| Machine Type | Semi-Automatic |
| Mounting Type | Portable |
| Brand | Jin Shaa |
| Automation Grade | Semi Automatic |
| Usage/Application | Portable keyway Milling |
| Material | Mild Steel |
| Capacity | JSM505 |
| Voltage | 220v single phase |
| Country of Origin | Made in India |

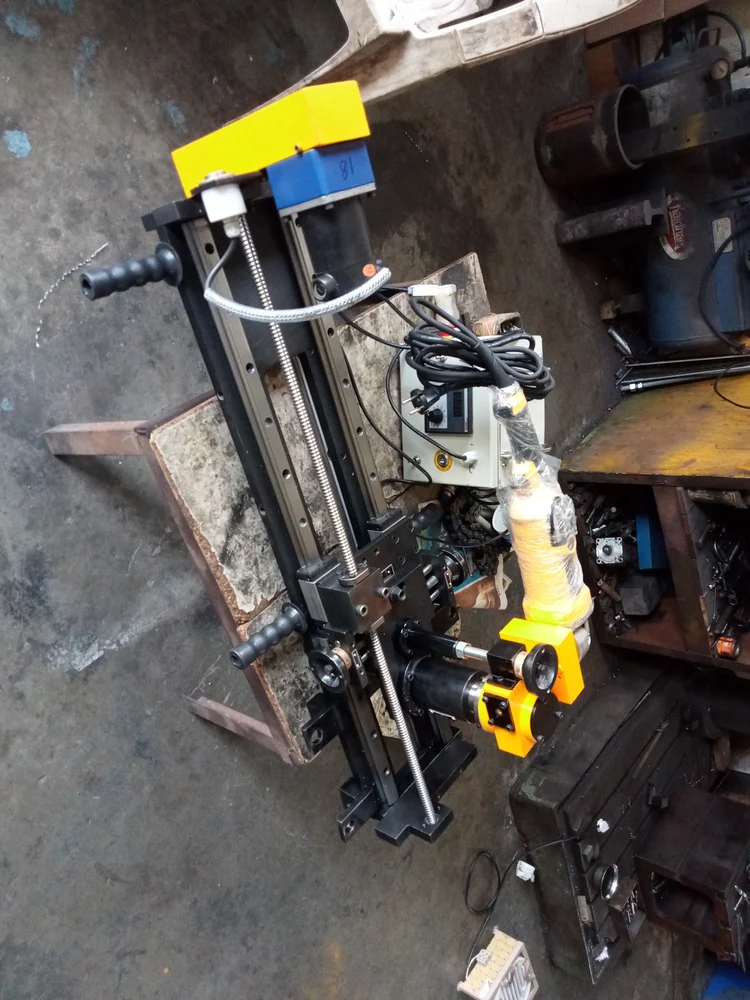

Portable keyway Milling machine with a stroke of 320mm and y stroke of 50 mm. Avilable in 110V/220v single phase.
Click to view full specifications ▼
| Mounting Type | Portable |
| Brand | Jin Shaa |
| Machine Type | Keyway Milling Machine |
| Material | Mild Steel |
| Model Name/Number | JSM606 |
| Usage/Application | Keyway Milling |
| Automation Grade | Semi Automatic |
| Voltage | 220v single phase |
| Weight | 60 Kgs |
| Warranty | 1 Year |
| No. of Speed | 06 |
| Is It Customized | Customized |
| Power | 1.3 KW |
| Power Source | 220v single phase |
| Product Type | Keyway Milling Machine |
| Country of Origin | Made in India |
| Spindle Hole Diameter | 16 mm |
| Cross Stroke | 50 mm |
| Max keyway Width | 86 mm |

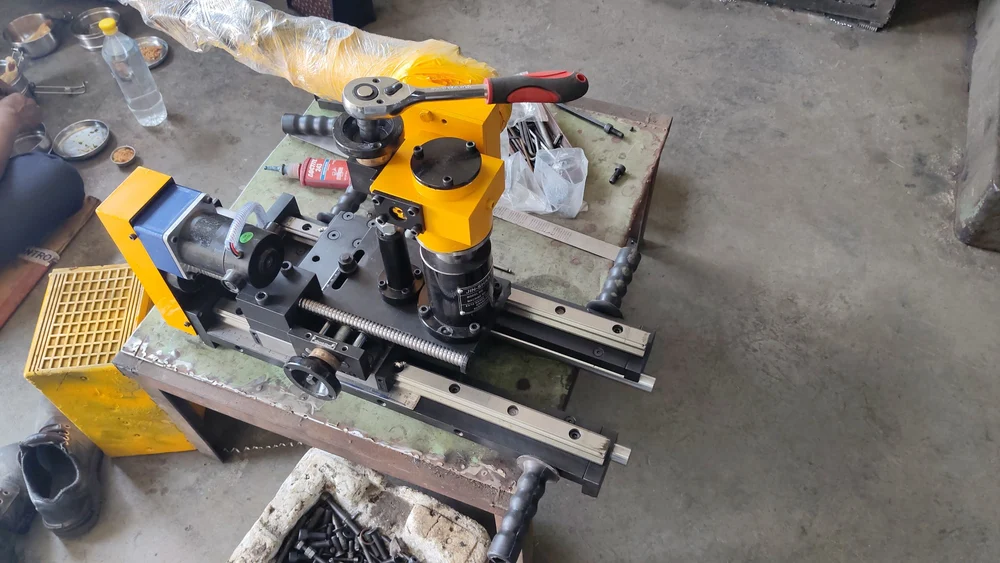

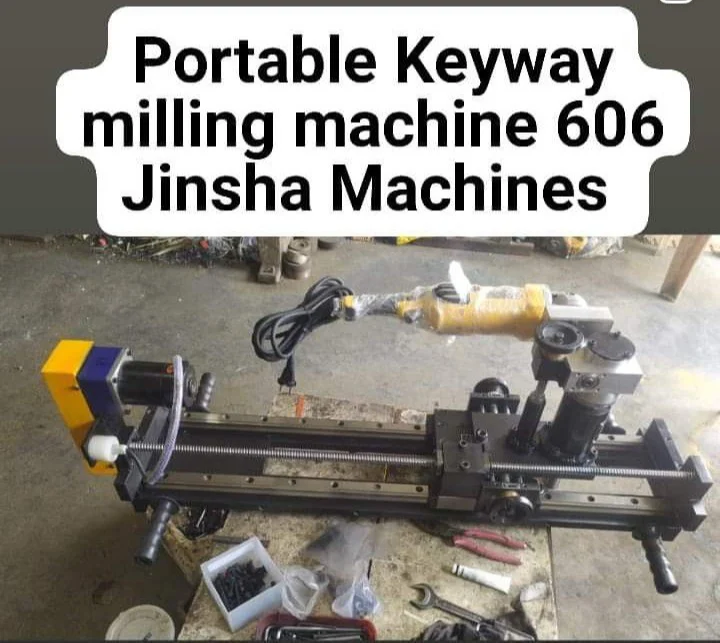

Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 606 Keyway Cutter is designed to mill (6mm) to (32m ) wide by 650 mm long keyway slots in 110 mm to 400 mm diameter shafts. The machine may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided by a PMDC motor. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 32 mm and clamping systems from 110 mm diameter onwards shafts.The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis .Max Keyway dimns possible on this machine are 86mm wide by 650mm length. Now also available in fully Automatic configuration please contact
Click to view full specifications ▼
| Mounting Type | Portable |
| Machine Type | Keyway Milling Machine |
| Brand | Jin Shaa |
| Material | Mild Steel |
| Model Name/Number | JSM303 |
| Usage/Application | Keyway Milling |
| Automation Grade | Semi Automatic |
| Voltage | 230 V |
| Weight | 34 Kgs |
| Warranty | 1 Year |
| Capacity | 150 |
| Power Rating | 1.3 KW |
| Power | 1.25 KW |
| Product Type | Keyway Milling Machine |
| Country of Origin | Made in India |
| Phase | Single Phase |

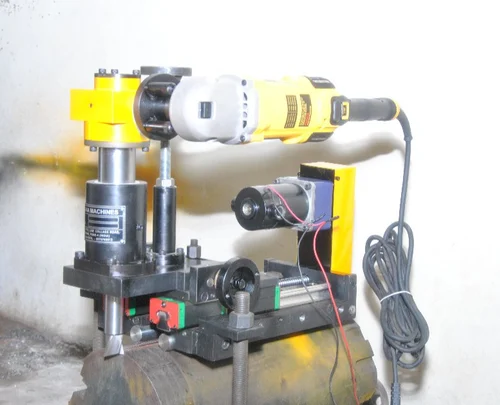

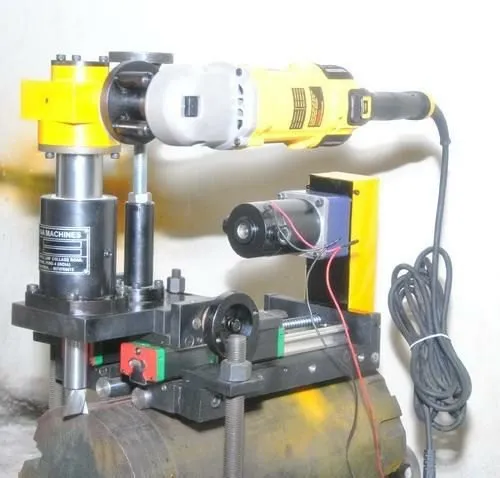

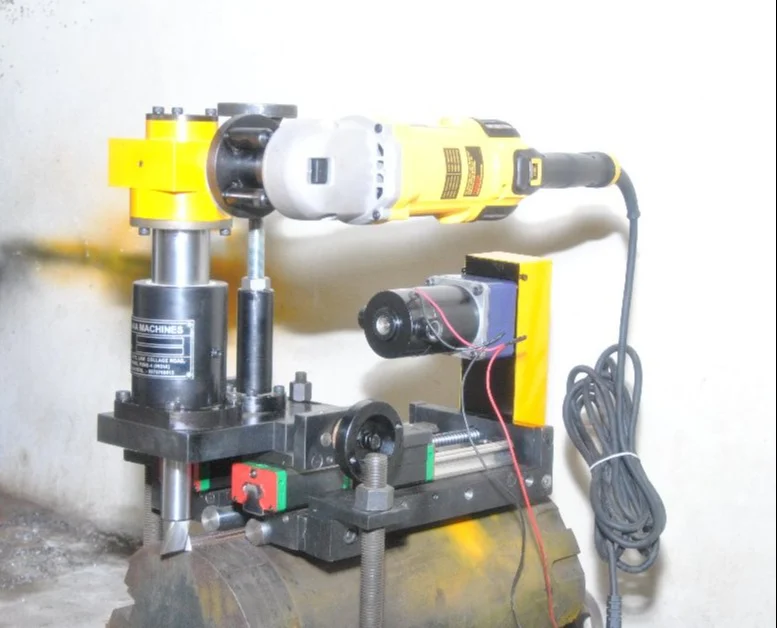

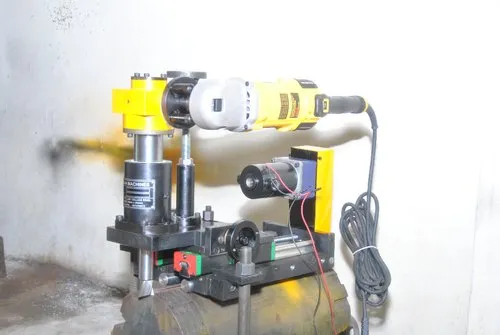

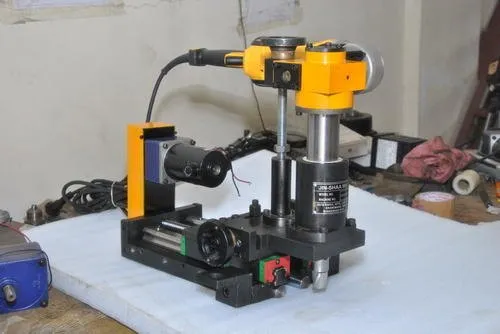

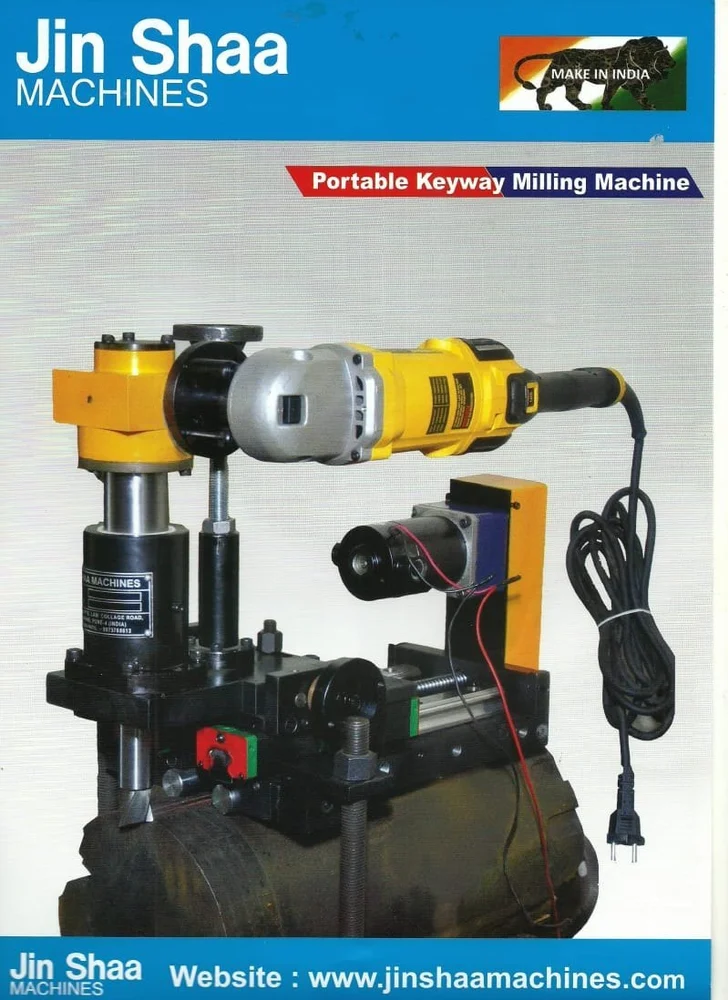

Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 303 Keyway Cutter is designed to mill (6mm) to (32m ) wide by 155 mm long keyway slots in 38mm to 300 mm diameter shafts. Avl in 110V/ 220V single phase. The cutter may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided for by a manual ratched system. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 32 mm and clamping systems from 50 mm to 300mm diameter shafts.The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis. Machines are now available with magnetic clamping also. Now also available in fully Automatic please contact configuration.
Click to view full specifications ▼
| Mounting Type | Portable |
| Machine Type | Semi Automatic |
| Brand | Jin Shaa |
| Material | Mild Steel |
| Model Name/Number | JSM404 |
| Voltage | 230 V |
| Power | 1.25 KW |
| Power Source | Electric |
| Spindle Hole Diameter | 16 mm |
| Cross Stroke | 50 mm |
| Max keyway Width | 86 mm |
| Phase | Single Phase |
Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 303 Keyway Cutter is designed to mill (6mm) to (32m ) wide by 155 mm long keyway slots in 38mm to 300 mm diameter shafts. Avl in 110V/ 220V single phase. The cutter may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided for by a manual ratched system. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 32 mm and clamping systems from 50 mm to 300mm diameter shafts.The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis. Machines are now available with magnetic clamping also. Now also available in fully Automatic please contact configuration.
