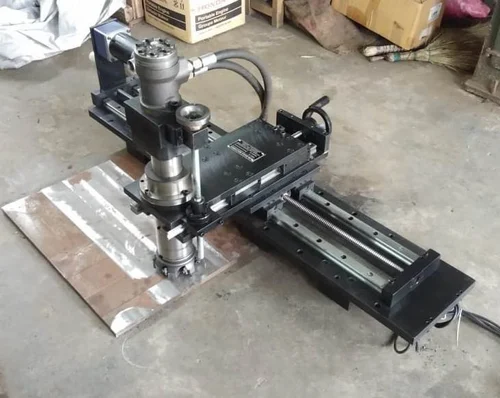

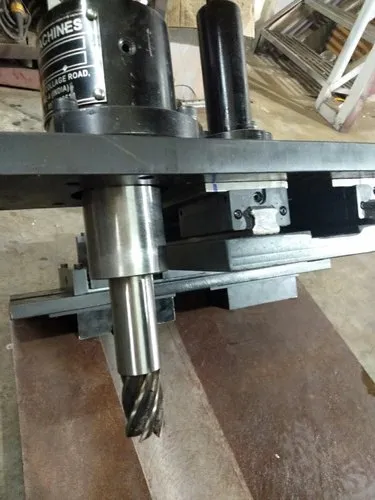

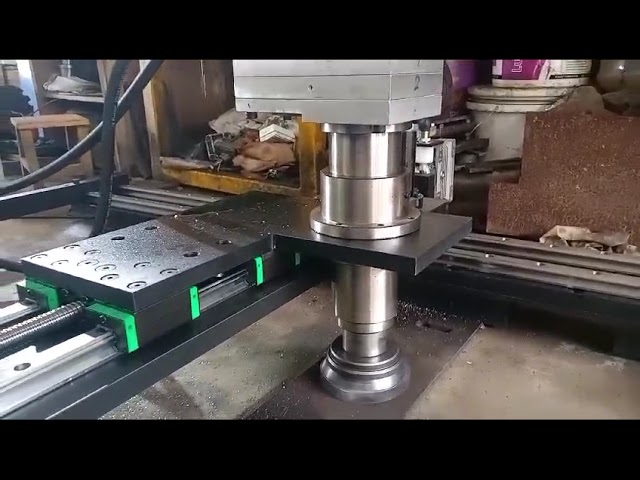

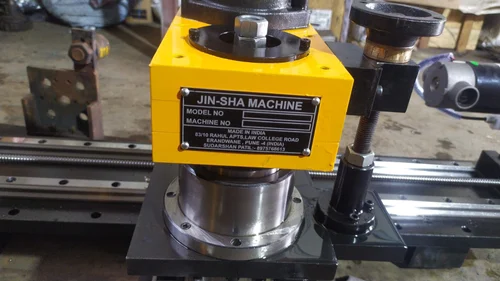

Portable Milling Machine

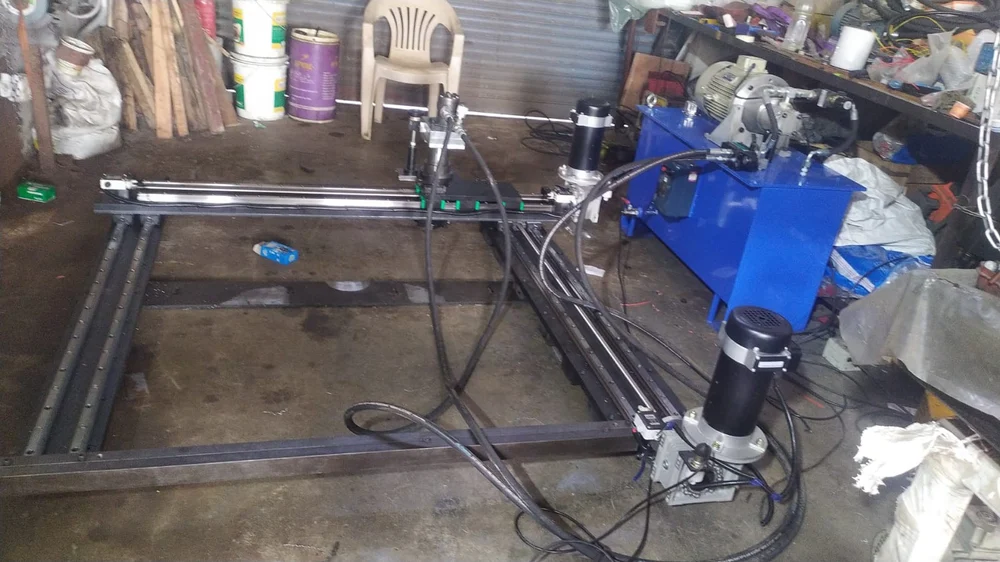

Technical Specifications:

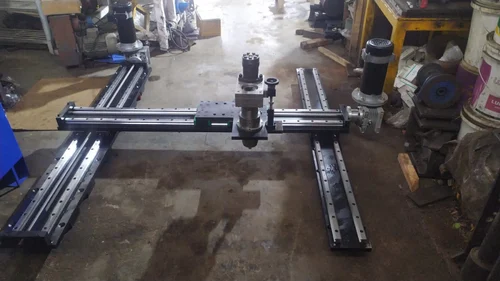

• X stroke 1400- mm double xaxis LM Guides with double nut ball screw.
• Y Cross stroke Gantry 1100mm LM guides with ball screw.
• Z Stroke 100mm with regular screw.

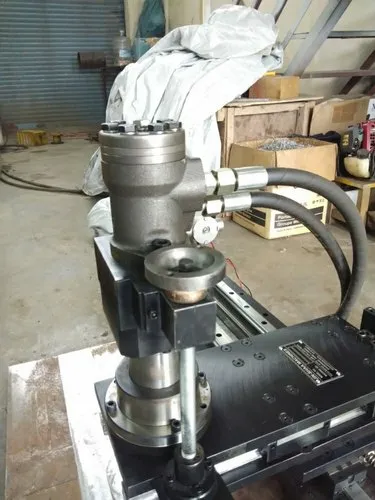

• Spindle Power Hydraulic 6.5 Hp capable of milling a 150 mm dia face mill.
• Feed Motor 1 Hp Geared DC Motor ball screw Xaxisfully variable speed.
• Feed Motor 1 Hp Geared DC Motor ball screw Yaxis fully variable speed.
• Machine mounting option 16 holes are provided of dia 12 at a pitch of 120mm to mount the machine secularly and rigidly also provided is 10 nos of electromagnets for electromagnectic clamping.

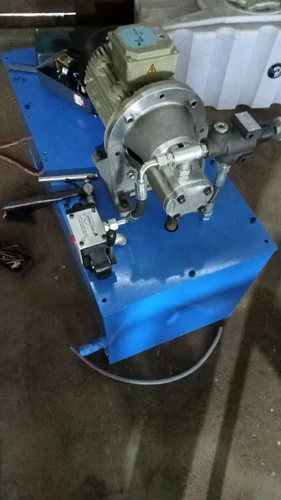

• Machine supplied with 6.5 HP Hydraulic motor max cutter speed 375 Rpm machine supplied with power pack to suit above hydraulic motor.
• Machine supplied with a small electrical panel to house the feed and the magnet controls and MCB.

List of Customers:

• M/s R&D Multiprofiles.
• Swastik Furnaces Mumbai.
• Shah Alloys Ahmedabad.

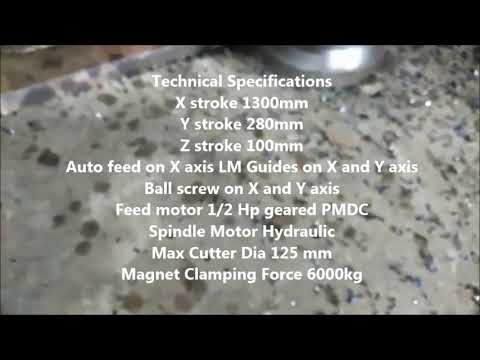

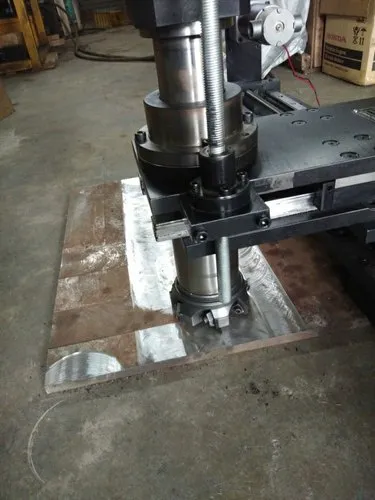

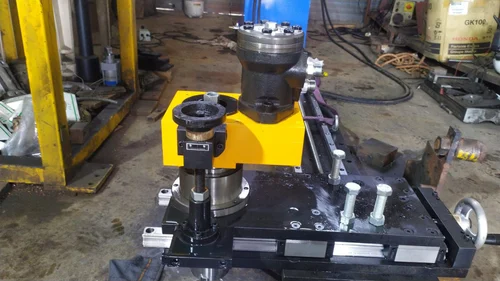

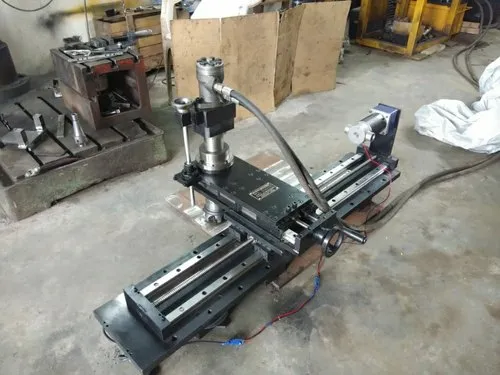

Technical Specifications:

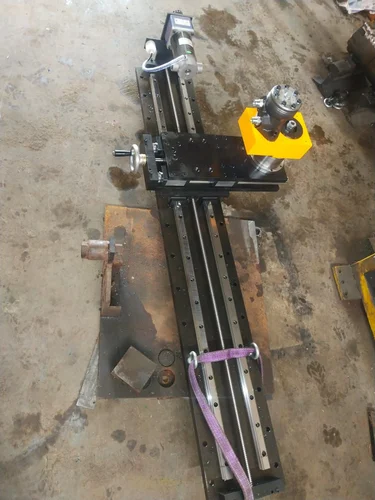

• X stroke 1300- mm LM Guides.
• Y Cross stroke 280mm LM guides.
• Z Stroke 125mm.
• Spindle Power Hydraulic 6.5 Hp.
• Feed Motor ½ Hp Geared DC Motor ball screw.
• Machine mounting option.
• 16 holes are provided of dia 14 at a pitch of 120mm to mount the machine secularly and rigidly.
• Electromagnetic clamping on the base is also now avaliable.
• Manufactured By Jinshaa Machines.

List of Customers:

• Acellor Mithal Dham Processing Pvt Ltd.
• ChouguleIndustries Goa ltd.
• Hydratight SaudiArabia.
• Paharimata Engg Pvt LTD Aurangabad.
• Metal Mount Inzeeruring North Macedonia.
• M/s Liaison Services INC Texas USA.
• M/s Hazmat Innovations Ltd Zambia.
• M/s Gulf Steel Factory Saudi Arabia.
• M/s Grand Kurein Trucking company Canada.
• M/s Ravi TechnoForge.
• M/s Blacksmith Enginnering.
• M/s Quality Engineering Reclaimers.
• M/S KFR Engineers.
• M/s P Dass Forgings.
• M/S KCP Chennai.

Additional Information:

• Item Code: JSM1300
• Production Capacity: 04
• Delivery Time: 03 Weeks
• Packaging Details: Wooden Box

Additional Information:

• Item Code: JSM1400
• Production Capacity: 02
• Delivery Time: 03 Weeks
• Packaging Details: Wooden Box

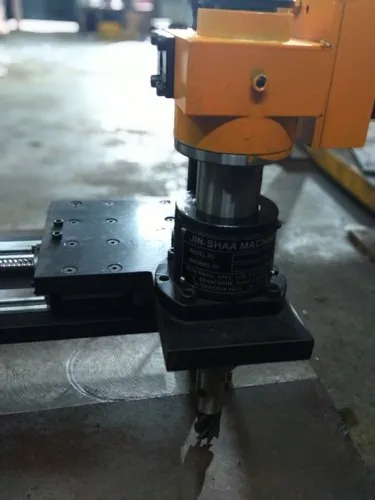

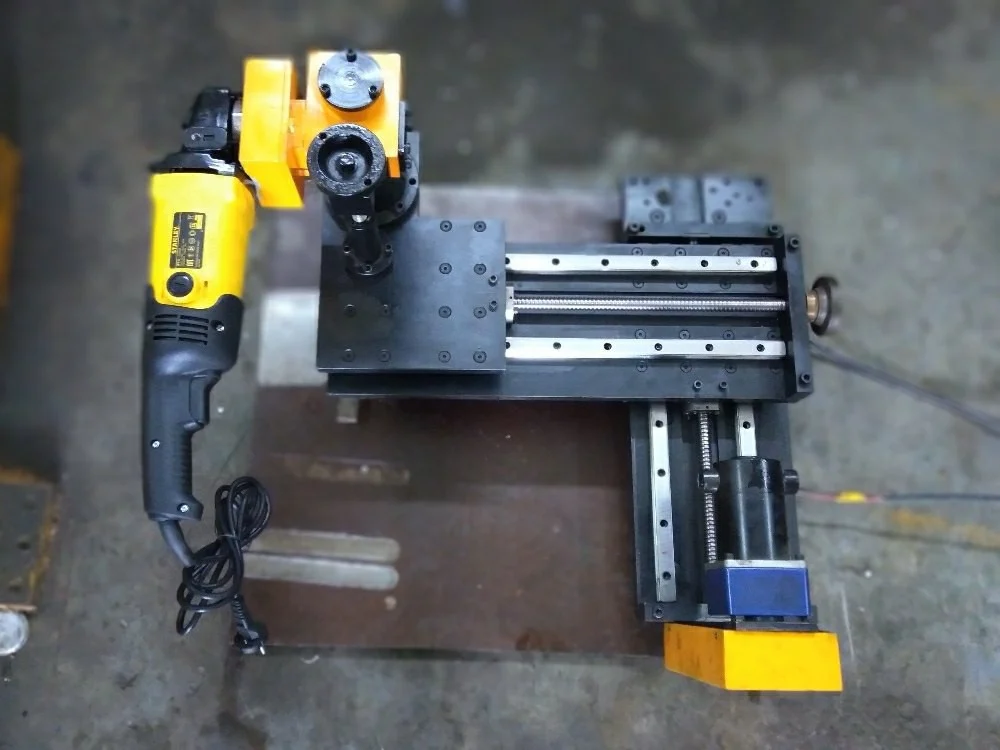

Strokes:

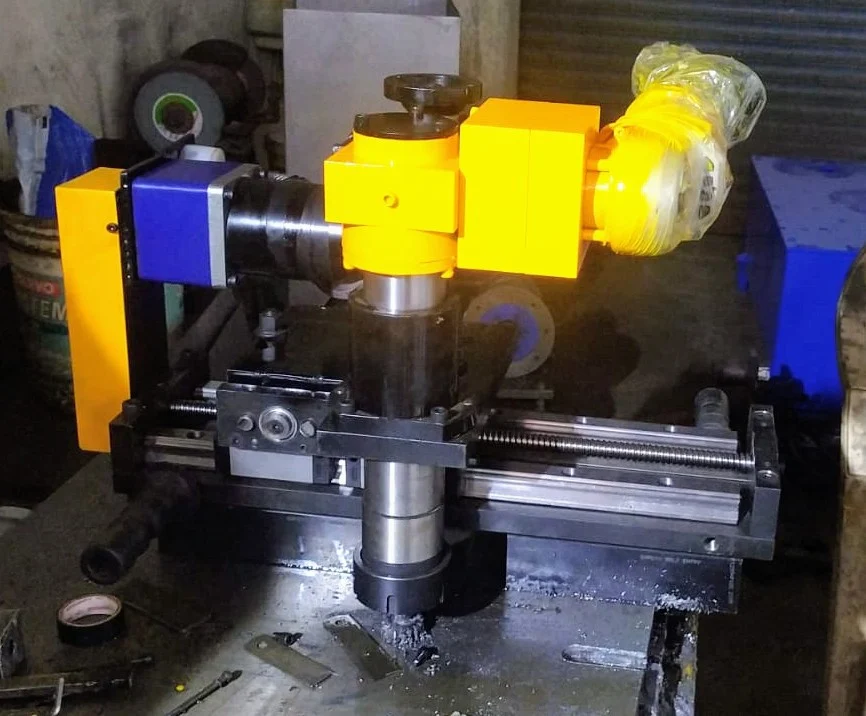

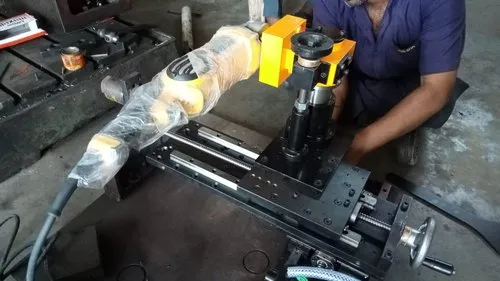

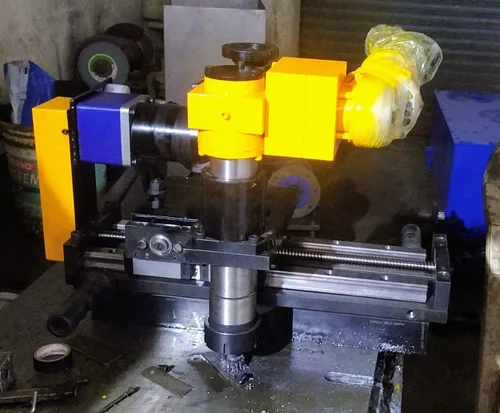

• X stroke 220mm auto Feed.
• Y stroke 315 mm manual hand feed.
• Z stroke 75 mm hand feed least count on scale is 0,02 mm Spindle.
• Is supported on 4 bearings.
• 1.3 kw variable speed 220v Single phase motor speed variation from 65RPM to max 450RPM.
• Max end mill ( Face mill) size is 34mm.
• Spindle taper ER50.
• Overall Dimensions of the machine Length 640mm Width 605mm Height 350mm.

Auto Feed:

• Via a 80 Watt PMDC Geared motor. Feed rate variation from max 416mm to min 80mm per minute driven by a 220v.
• Single phase Ac to Dc drive feed is fully variable.
• Machine Guides are Linear motion guides giving a very accurate and sturdy milling action.
• Both X axis and Y axis have ball screws and ball nuts thus eliminating the need of conventional leadscrew and nuts for may years.
• Electromagnets 2 nos are mounted below the base plate combined clamping force of both magnets is 44000.
• N A small panel is supplied with the machine which houses the feed control drive and the magnets on /off controls.

List of Customers:

• Veloces Engg and Services Chennai.
• Nipha Exports Pvt Ltd Howrah West Bengal.
• GNFC Bharuch.

Additional Information:

• Item Code: JSM300
• Production Capacity: 04
• Delivery Time: Exstock
• Packaging Details: Wooden Box

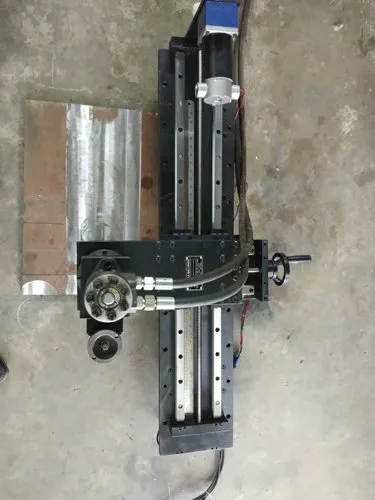

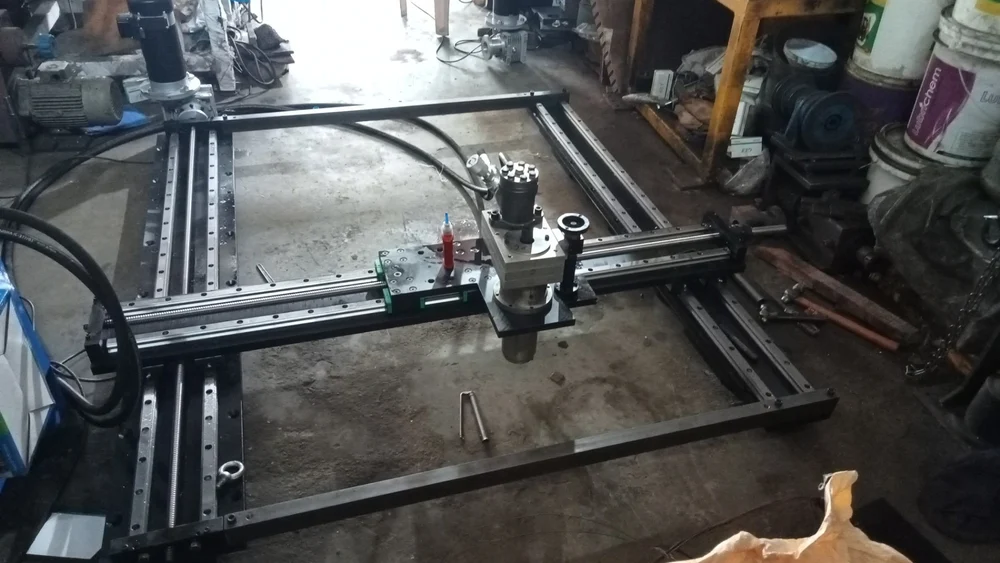

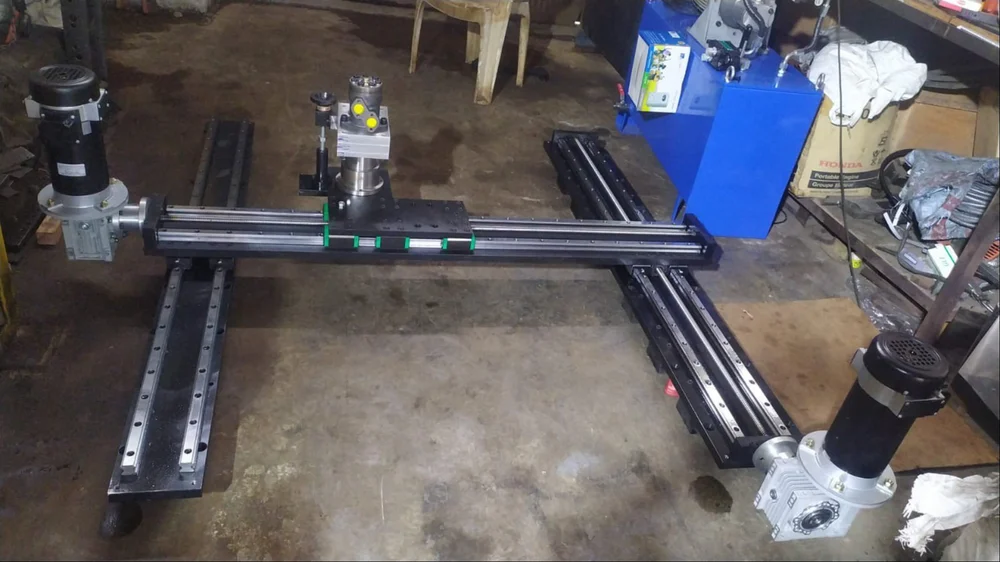

Technical Specifications:

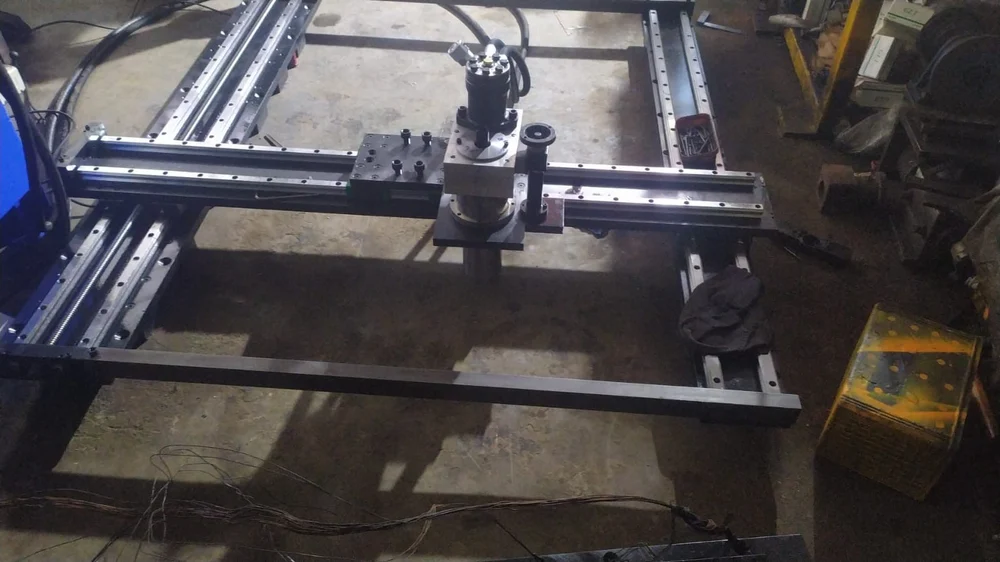

• X stroke 1400- mm double xaxis LM Guides with double nut ball screw.
• Y Cross stroke Gantry 1100mm LM guides with ball screw.
• Z Stroke 100mm with regular screw.
• Spindle Power Hydraulic 6.5 Hp capable of milling a 150 mm dia face mill.
• Feed Motor 1 Hp Geared DC Motor ball screw X-axisfully variable speed.
• Feed Motor 1 Hp Geared DC Motor ball screw Y-axis fully variable speed.
• Machine mounting option 16 holes are provided of dia 12 at a pitch of 120mm to mount the machine secularly and rigidly also provided is 10 nos of electromagnets for electromagnectic clamping.
• Machine supplied with 6.5 HP Hydraulic motor max cutter speed 375 Rpm machine supplied with power pack to suit above hydraulic motor.
• Machine supplied with a small electrical panel to house the feed and the magnet controls and MCB.

List of Customers:

• M/s R&D Multiprofiles.
• Swastik Furnaces Mumbai.
• Shah Alloys Ahmedabad.

Additional Information:

• Item Code: JSMG1300
• Production Capacity: 02
• Delivery Time: 06 Weeks
• Packaging Details: Wooden Box

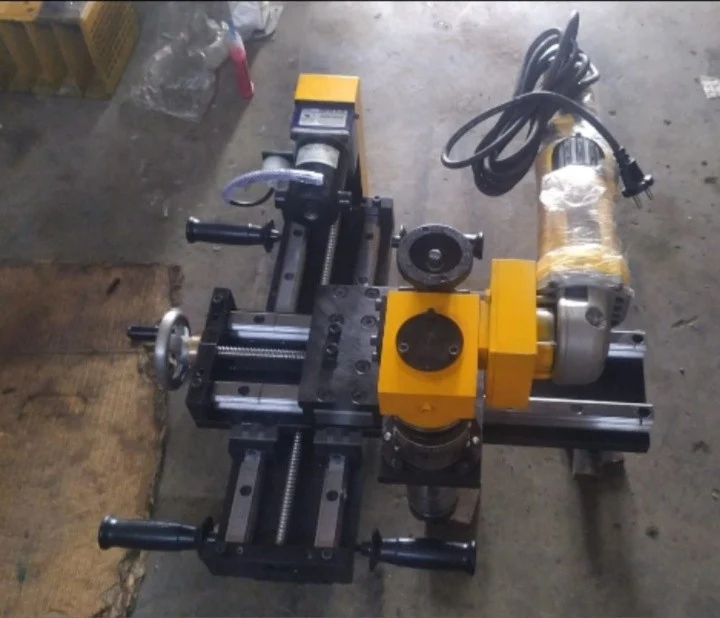

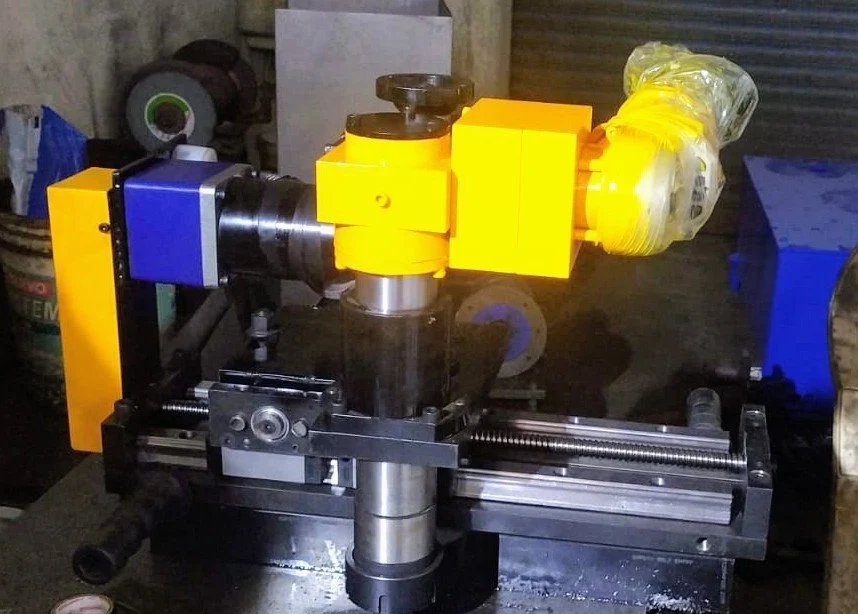

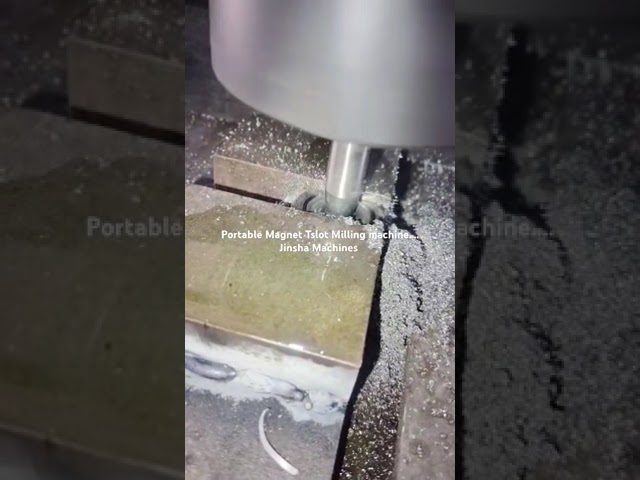

Portable T-slot Milling Machine:

• X-axis stroke 300 mm.
• Y-axis 280mm.
• Z axis 80 mm.
• Spindle Power 1.3 KW.
• 110v/220V Single Phase.

List of Customers:

• Sharma Engg Uttar Pradesh.

Additional Information:

• Item Code: JSMT300
• Production Capacity: 05
• Delivery Time: 04 Weeks
• Packaging Details: Wooden Box
