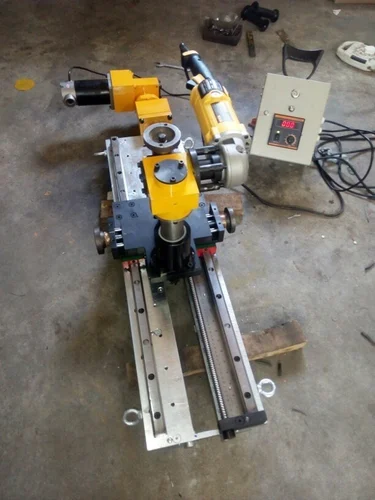

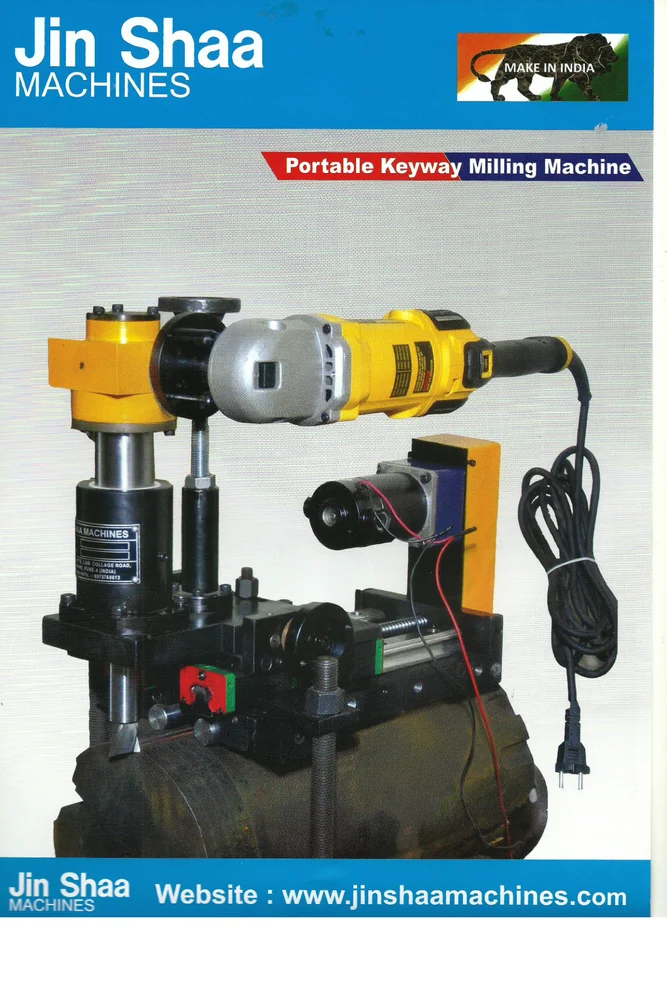

Portable Keyway Milling Machine Jinshaa Machines Portable Keyway Milling Machine. The model JSM 606 Keyway Cutter is designed to mill (6mm) to (32m ) wide by 650 mm long keyway slots in 110 mm to 400 mm diameter shafts. The machine may be used to mill new keyways ,recut keyways after being weld repaired or to mill a new keyway to replace a damaged keyway .The machine uses a two bar v guide block system to auto align and center the tool to the shaft .for larger size shafts a system of chain clamps are included . The tool incorporates a geaduated depth of cut system .Axial feed is provided by a PMDC motor. The model uses standard 16 m shank mill cutters The machine comes with a standard storage case a selection of endmills from 6mm to 32 mm and clamping systems from 110 mm diameter onwards shafts.The machine uses Hiwin make Linear Guideways and no Cast iron dovetails guides giving complete rigidity over the milling process Machines are now available with Auto Feed on longitudinal axis .Max Keyway dimns possible on this machine are 86mm wide by 650mm length. Now also available in fully Automatic configuration please contact.
